Loading Photo Paper / Plain Paper in Rear Tray

You can load plain paper or photo paper.

• Watch the movie

You can also load envelopes on the rear tray.

• Loading Envelopes in Rear Tray

1. Prepare paper.

   Align the edges of paper. If paper is curled, flatten it.



   Note

   • Align the edges of paper neatly before loading. Loading paper without aligning the edges may cause paper jams.

   • If paper is curled, hold the curled corners and gently bend them in the opposite direction until the paper becomes completely flat.

     For details on how to flatten curled paper, see Check3 in Paper Is Smudged/Printed Surface Is Scratched/Ink Blots/Paper Curl.

   • When using Photo Paper Plus Semi-gloss SG-201, even if the sheet is curled, load one sheet at a time as it is. If you roll up this paper to flatten, this may cause cracks on the surface of the paper and reduce the print quality.

2. Open the feed slot cover (A).



3. Pull straight up and fold back paper support (B).



4. Slide right paper guide (C) to open both paper guides.



5. Load paper stack in portrait orientation WITH PRINT SIDE FACING UP.



   Important

   • Always load paper in portrait orientation (D). Loading paper in landscape orientation (E) can cause paper jams.



6. Slide right paper guide (C) to align with both sides of paper stack.

   Do not slide the paper guides too hard against the paper. The paper may not be fed properly.



   Note

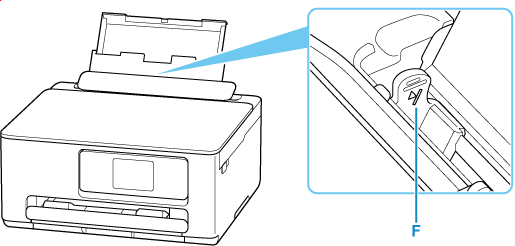

   • Do not load sheets of paper higher than the load limit mark (F).



7. Close feed slot cover (A) gently.



   After closing the feed slot cover, the paper setting confirmation screen for the rear tray appears on the touch screen.

8. If page size and media type on touch screen match size and type of paper loaded in rear tray, select Yes.

   If not, select Change to change the settings in accordance with the size and type of the loaded paper.



   Note

   • See Check paper replacement when you want to hide the screen for confirming the setting of paper.

9. Pull out the paper output tray (G) and the output tray extension (H).



Note

• There are various types of paper, such as paper with a special surface coating for printing photos at optimal quality and paper suitable for documents. Each media type has specific preset settings (how ink is used and sprayed, distance from nozzles, etc.), that allow you to print to that type with optimal image quality. The wrong paper settings may cause poor printout color quality or scratches on the printed surface. If you notice blurring or uneven colors, increase the print quality setting and try printing again.

• To prevent incorrect printing, this printer has a function that detects whether the settings for the paper loaded on the rear tray matches the paper settings. Before printing, make print settings in accordance with the paper settings.
